250A Transformer Porcelain Bushing Chrome Coating 0.7kg HV Customized

Brand Name : YC

Model Number : DIN 1/250

Certification : ISO 9001, ISO 14001, OHSAS 18001

Place of Origin : Hebei, China

MOQ : 1 piece

Price : negotiate

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3-10 work days

Packaging Details : Standard package

Name : 1KV 250A - 630A Transformer Bushing Porcelain Insulator

Condition : Power transformers

Threading : Standard thread

Dimensions : Customized approved

Weight : 0.7kg

Thread : As per standard and customized

Application : Electrical energy, electrical installation, power transmission and distribution

Color : Brown, white

Contact Now

1KV 250A - 630A Transformer Bushing Porcelain Insulator

Description

As a standard product we can offer both DIN standard bushings and the latest EN range of bushings, these product cover the requirements of distribution and power transformer manufacturers. We can offer ratings from 1kV through to 40.5kV and up to 16000A with a wide variety of creepage distances to meet all environmental conditions.

Code	Type-voltage/current (KV/A)	Dimensions (mm)							Tank hole (D0)	Weight
Code	Type-voltage/current (KV/A)	A	B	C	D	D1	D2	D3	Tank hole (D0)	(kg)
YC.286.2530.1	1KV/250A	138	68	25	M12	Φ50	Φ60	Φ50	28	0.7
YC.286.2530.1	1KV/630A	178	82	37	M20	Φ70	Φ85	Φ70	45	2

Features

Name	1KV 250A - 630A Transformer Bushing Porcelain Insulator
Item	Low Voltage Bushings
Product specification	Brass components for LV & HV transformer
Length / Size	We provide customized size & follow clients idea and designs
Model	ANSI EN DIN standard
Type	Insulator
Sample	Approved
Application	Power Transformer & Distribution Transformer
Coating and Finishing	Natural, nickel plated, tin plated brass, electro-tin, chrome or any coating as per customer requirements
Length / Size	We provide customized size & follow clients idea and designs

Note

Please let’s know the size, quality, material, grade or target price if it is special nonstandard products and send the drawing and samples to us.

Property

Excellent apperance and glazing, smooth at surface with very few defect.
Good mechanical and electrical strength.
High precision quality

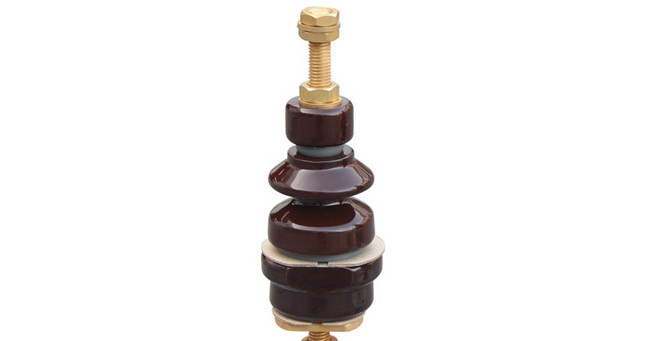

Product picture

250A Transformer Porcelain Bushing Chrome Coating 0.7kg HV Customized
